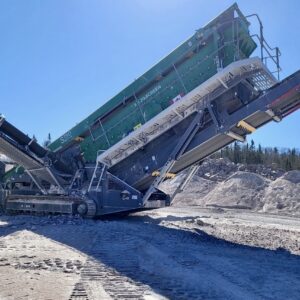

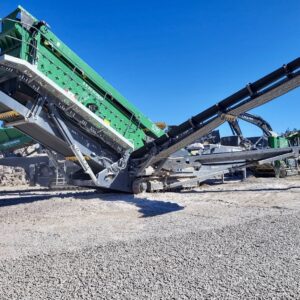

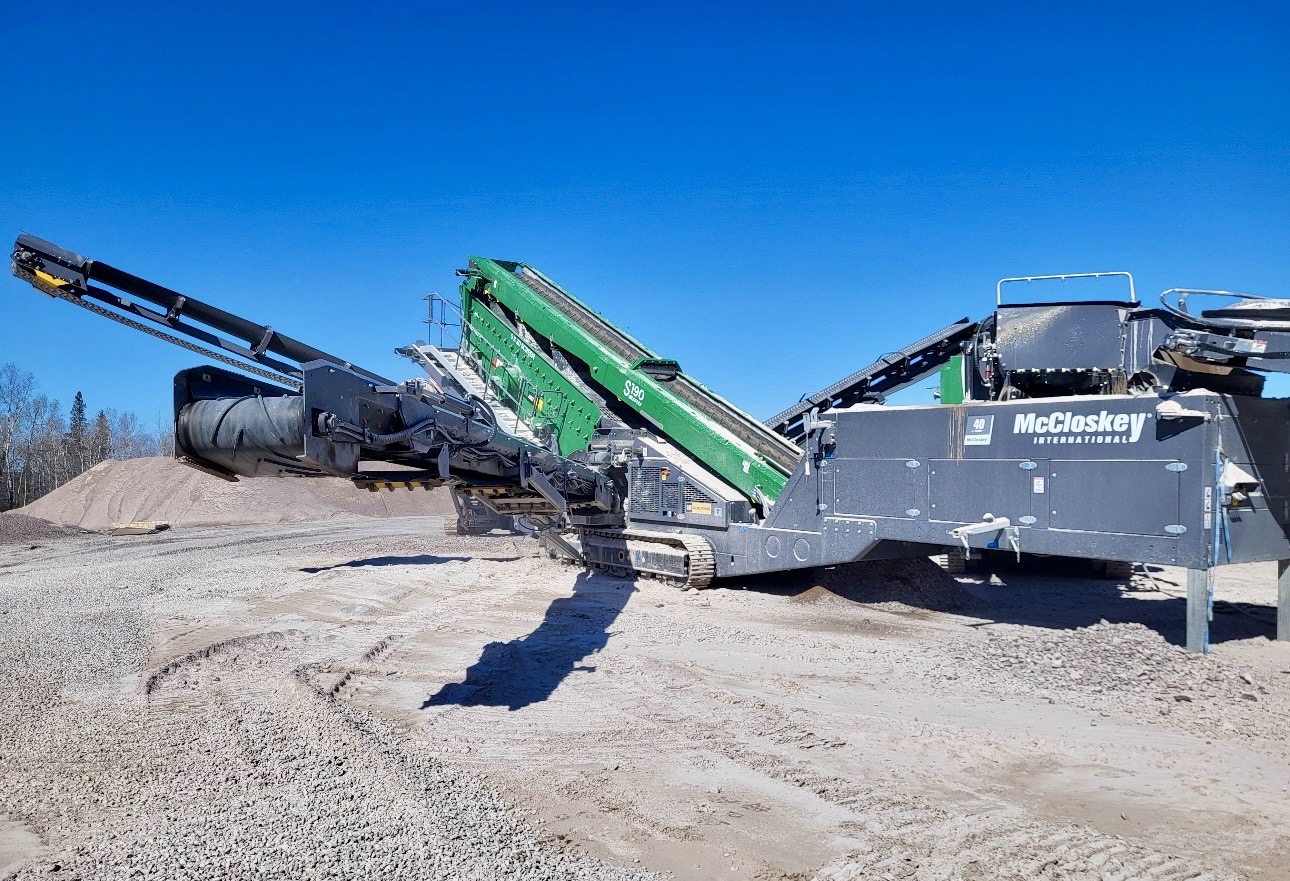

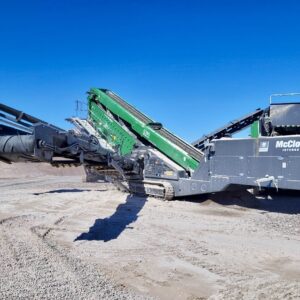

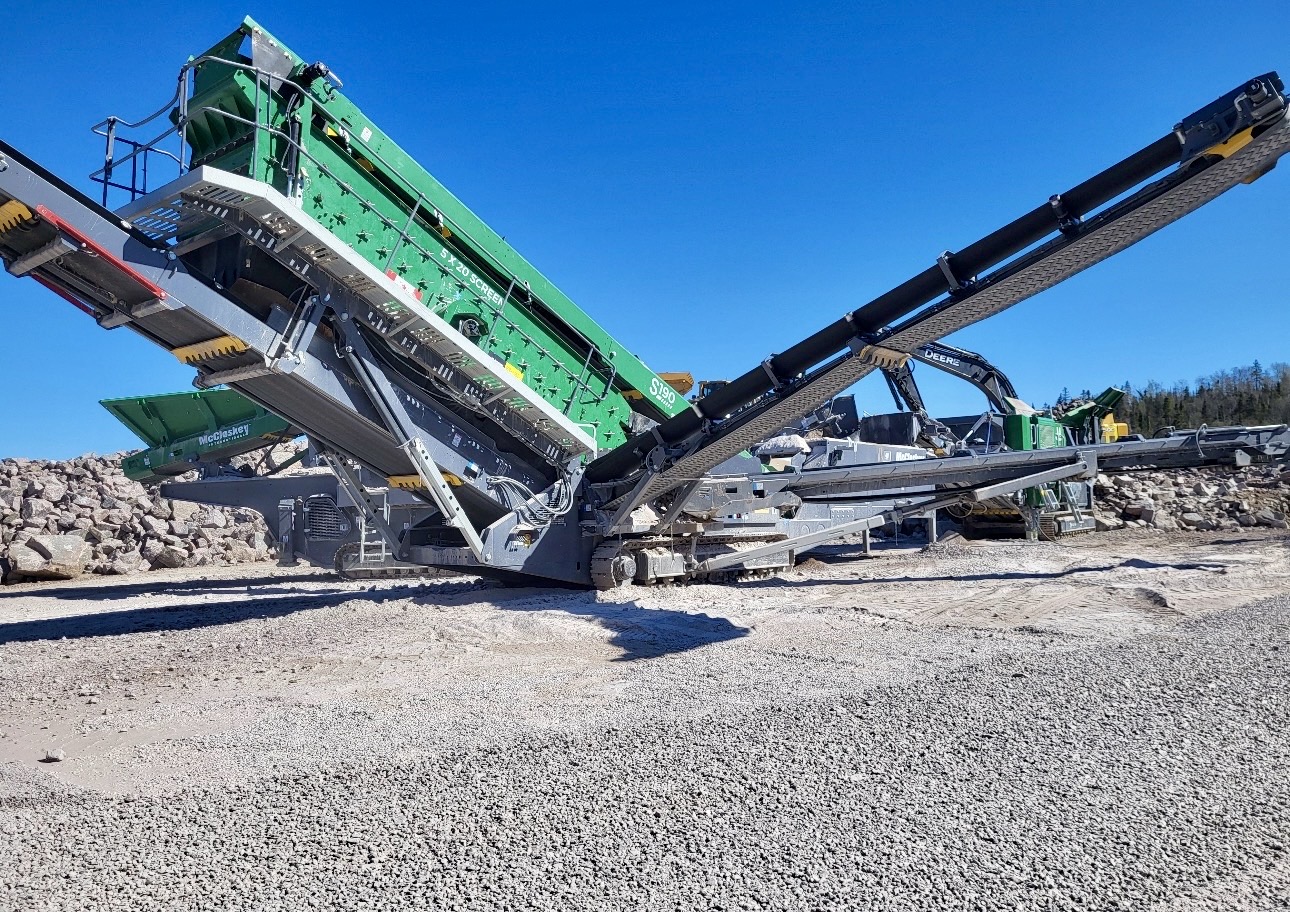

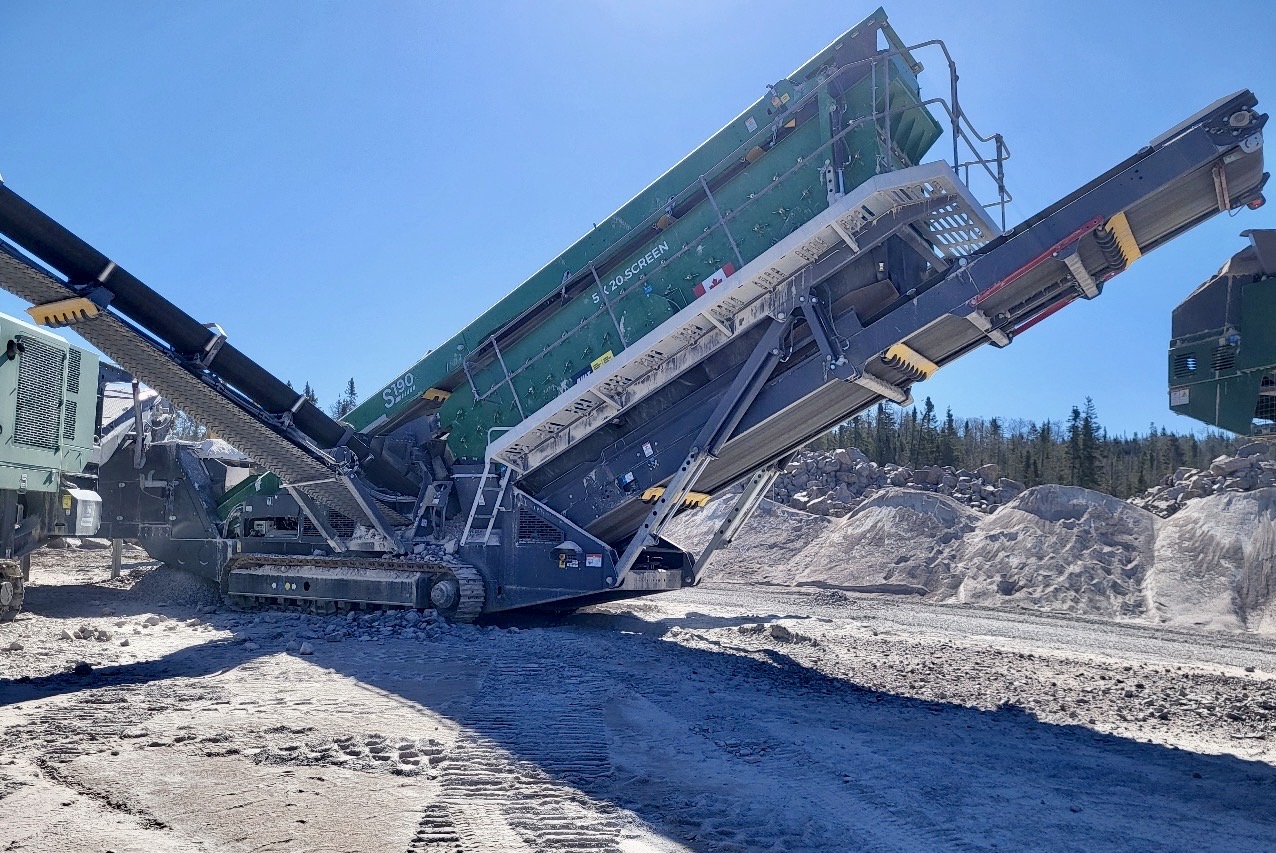

2025 McCloskey S1903 DT Screening Plant:
- Hours: 1300H
- Engine: Cat C4.4 Tier 4 Final/Stage V
- Horsepower: 130hp
- Other: Fast 10 min set up time, transport weight 85,500lbs, triple deck/top & middle deck 20′ x 5’/bottom deck 18′ x 5′, screen angle 20 degrees to 30 degrees adjustable, capacity up to 700 plus tons per hour, hopper capacity 15 cubic yards, main belt width 42″, tail conveyor 15’3″ long, side conveyors 16’9″ long, 4 degree remote controlled tipping grid!

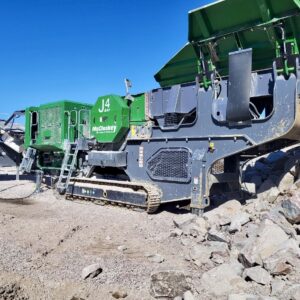

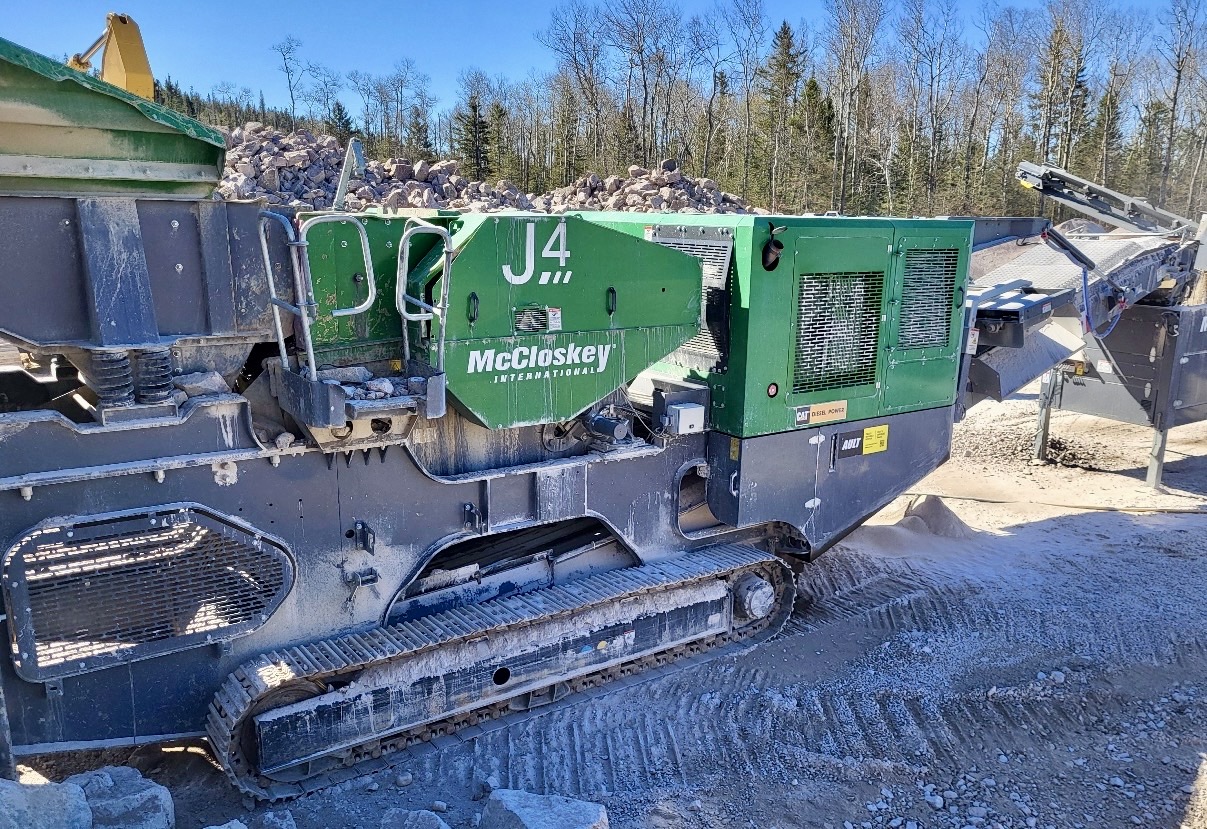

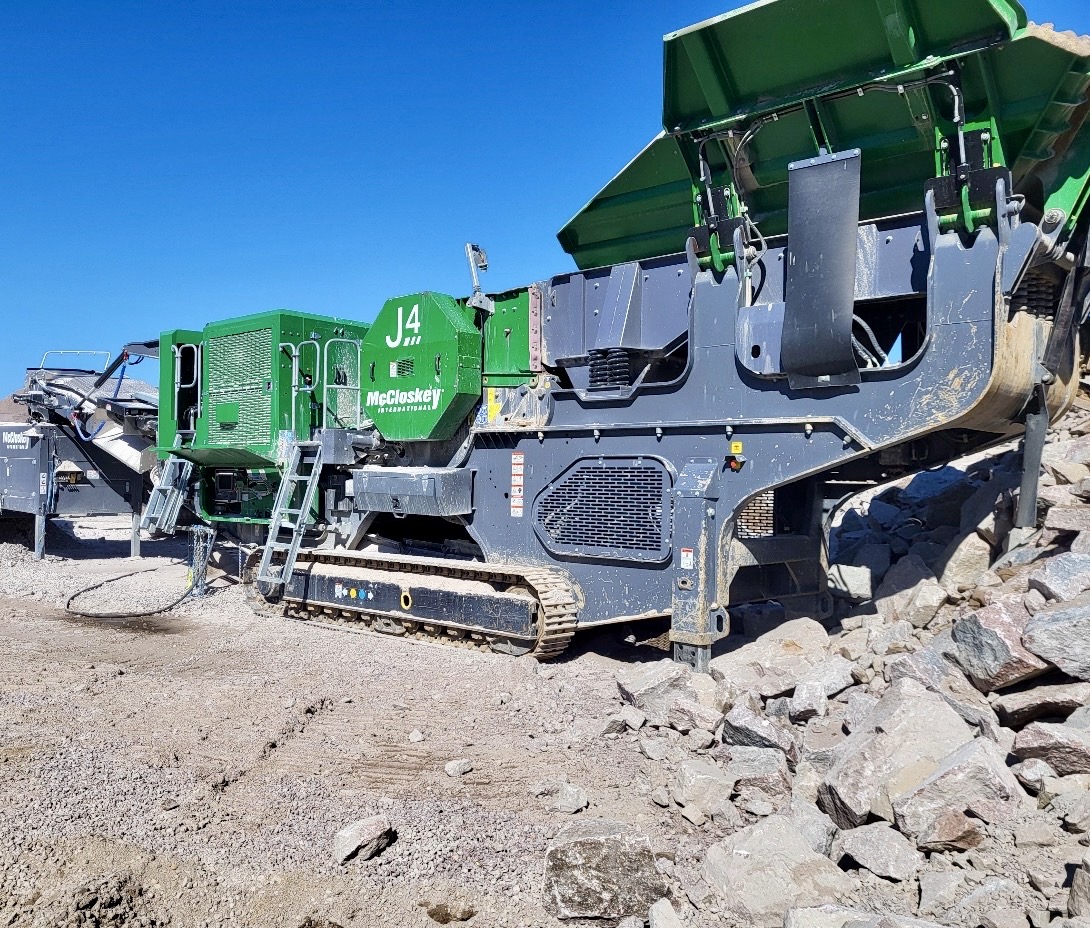

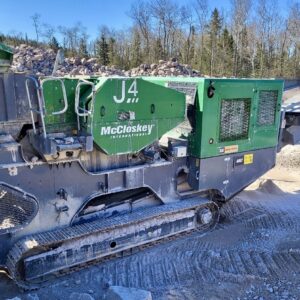

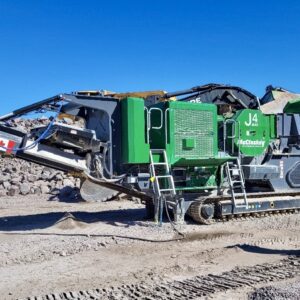

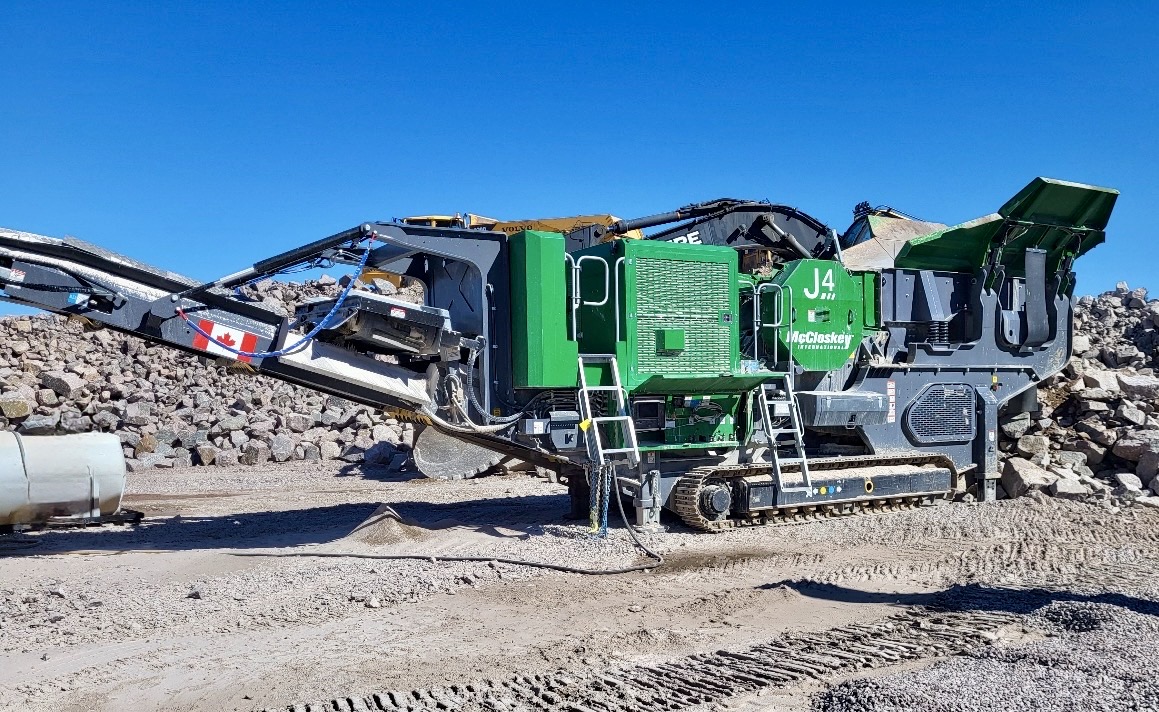

2025 McCloskey J4 Jaw Crusher on Tracks:
- Hours: 1400H
- Engine: Cat C9.3B
- Horsepower: 416hp
- Other: Jaw chamber is 42″ x 28″ single toggle, 7.8 cubic yard hydraulic folding hopper, weight 113,000lbs, magnet, transport dims: 51’8″ long x 9’6″ wide x 11’6″ high, main conveyor 12’10”, side conveyor 11’3″, feeder 41’9″ long x 167″ wide, dust suppression system!

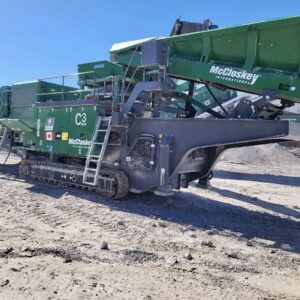

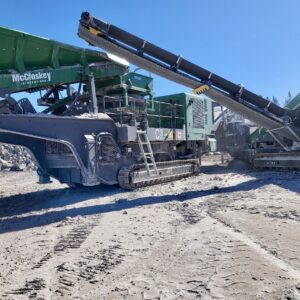

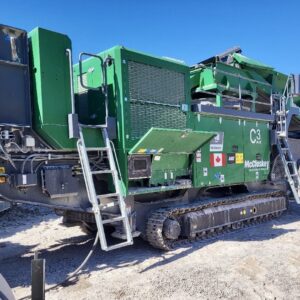

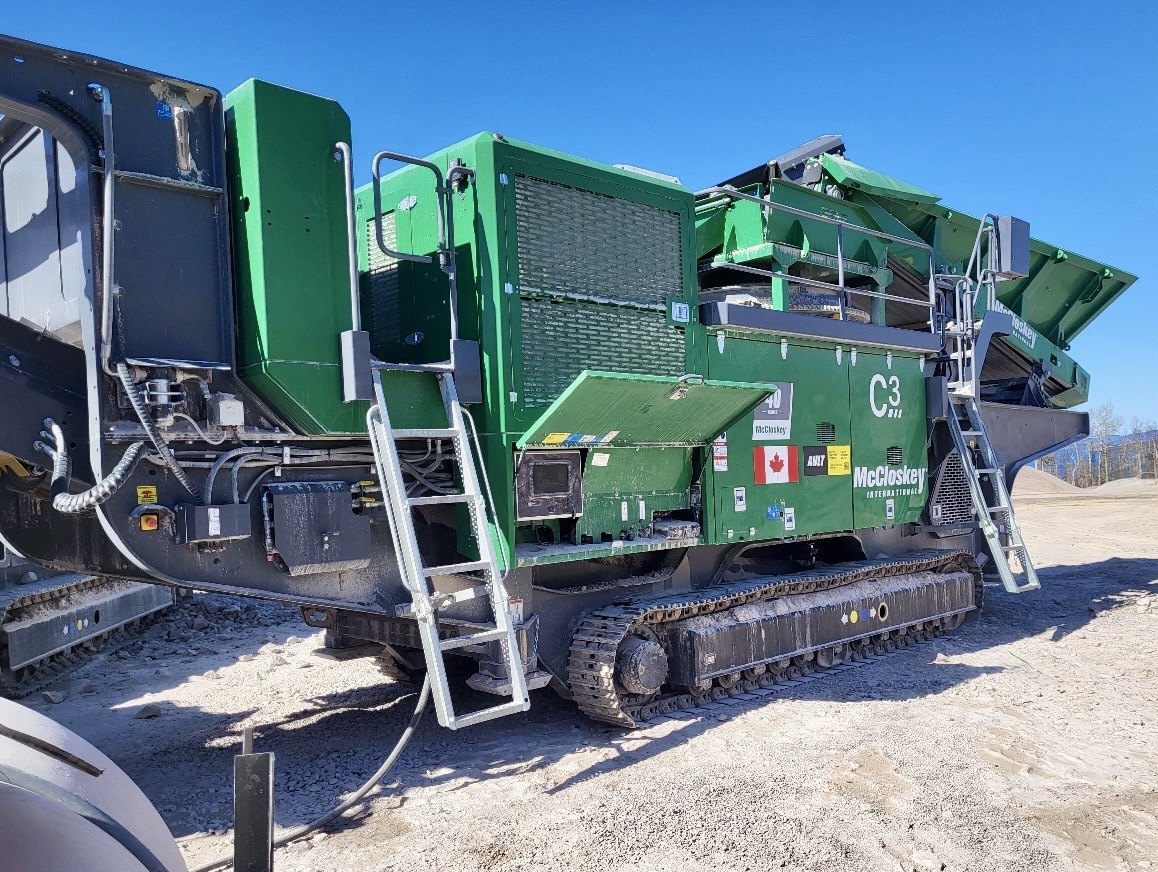

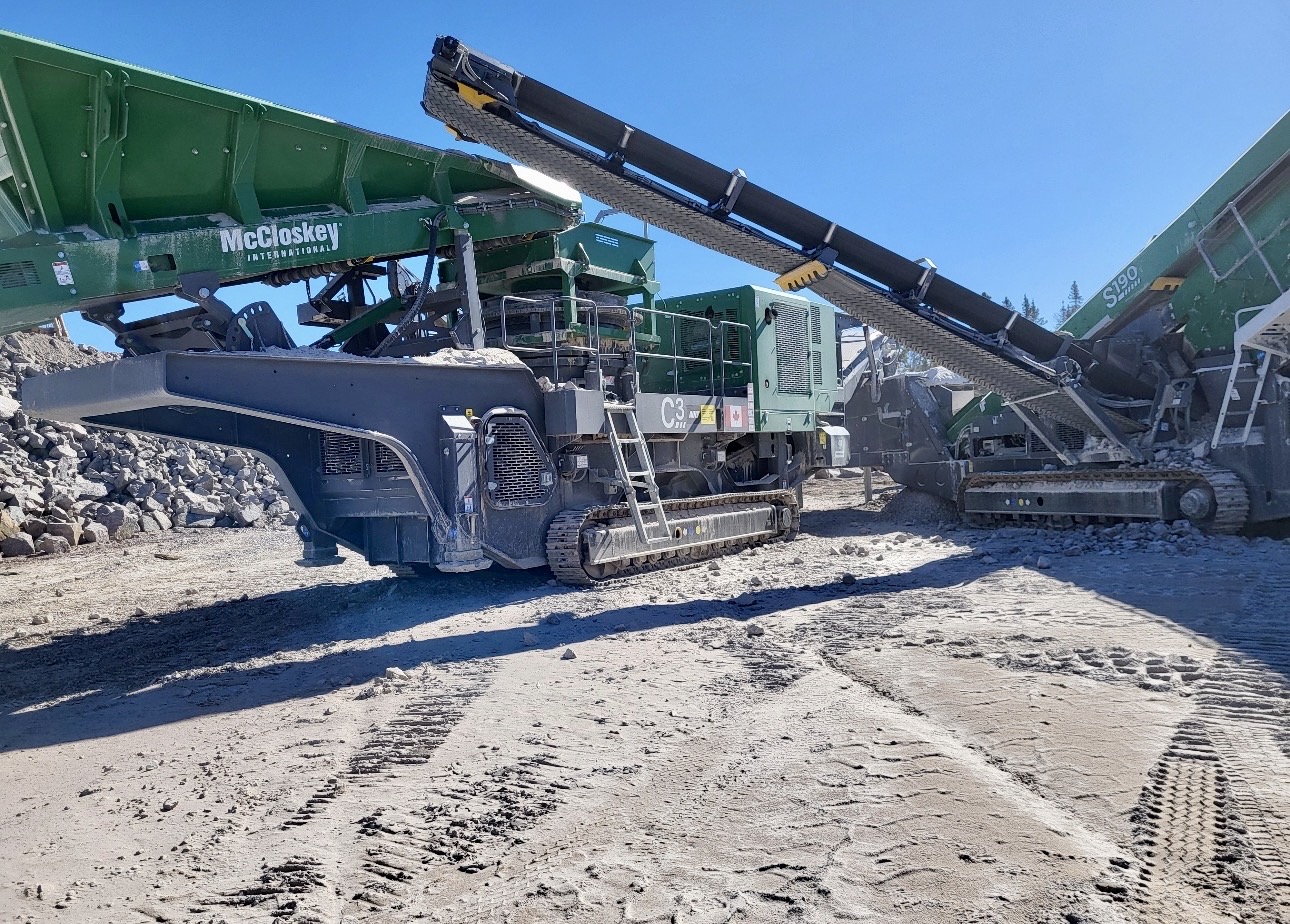

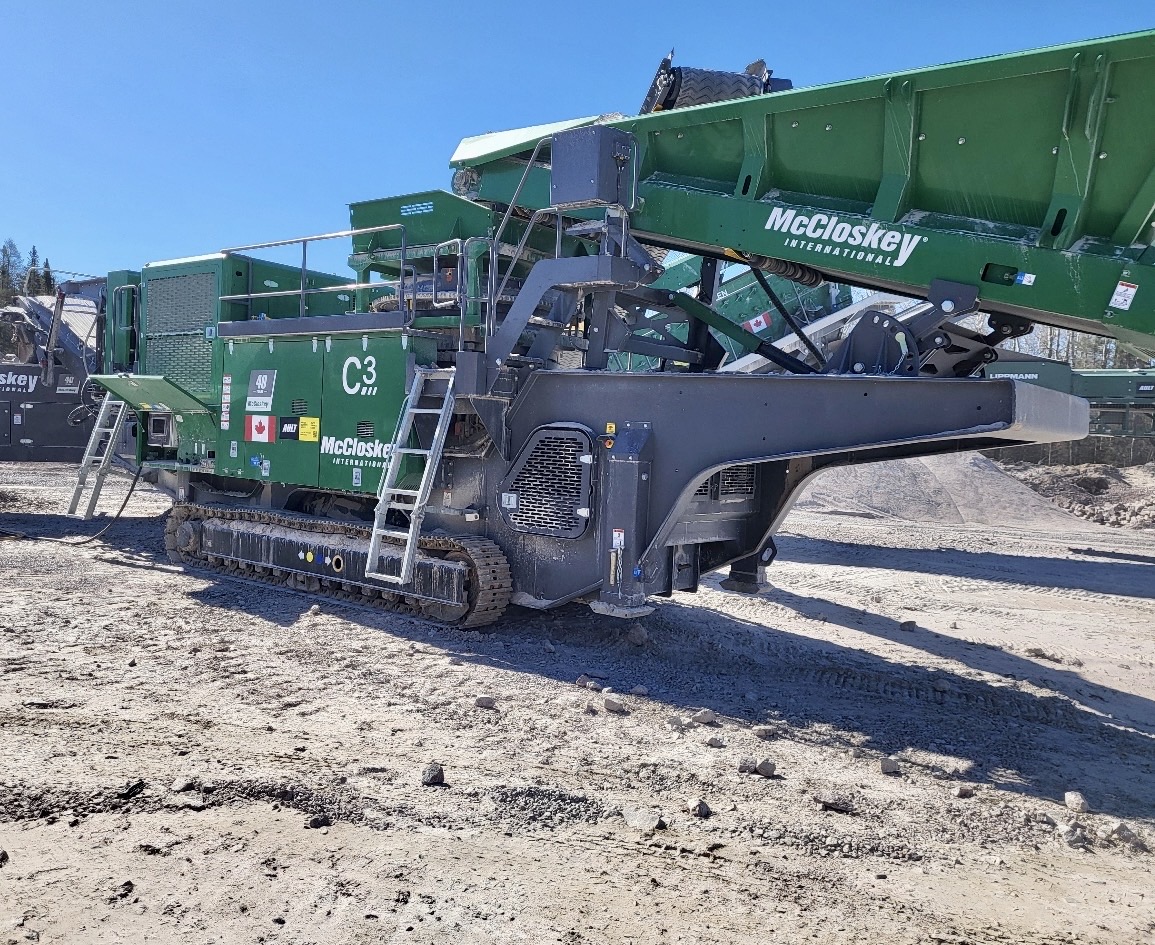

2025 McCloskey C3 Cone Crusher on Tracks:
- Hours: 1200H
- Engine: Cat C13B
- Horsepower: 516hp
- Other: Mc300 Cone, direct drive, 8.1 cubic yard, main conveyor 48″ wide/36″ feed opening, hydraulic adjustable CSS, stock pile height 12’9″, main conveyor width 48″, transport height 11’9″ x 57’4″ long x 10’4″ wide, 113,500lbs transport weight, dust suppression system!

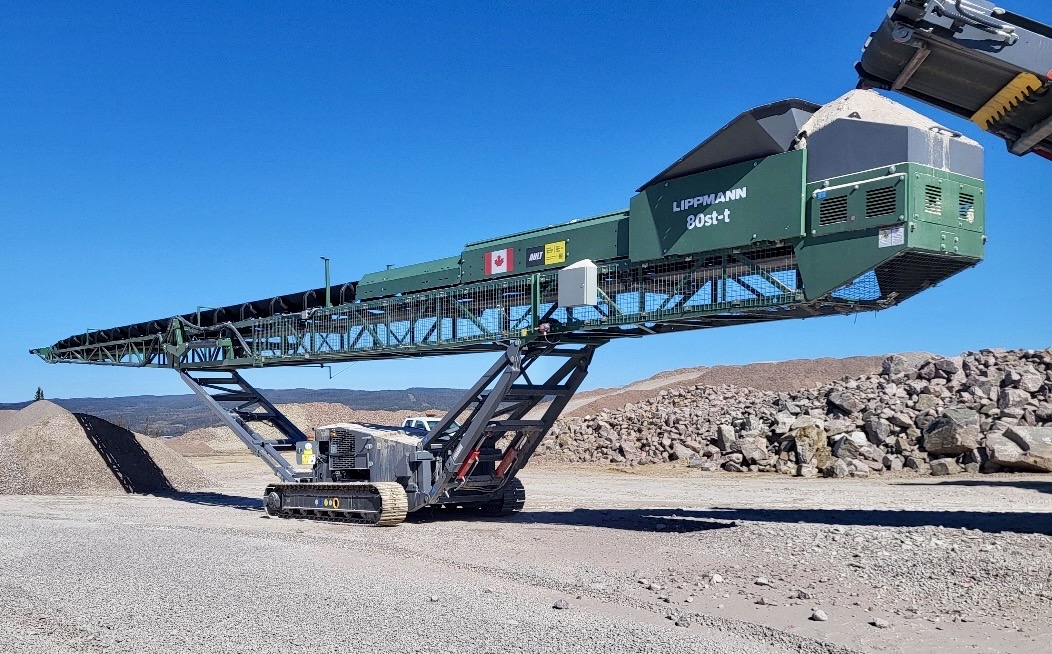

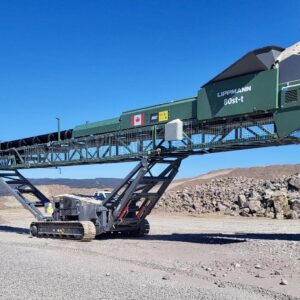

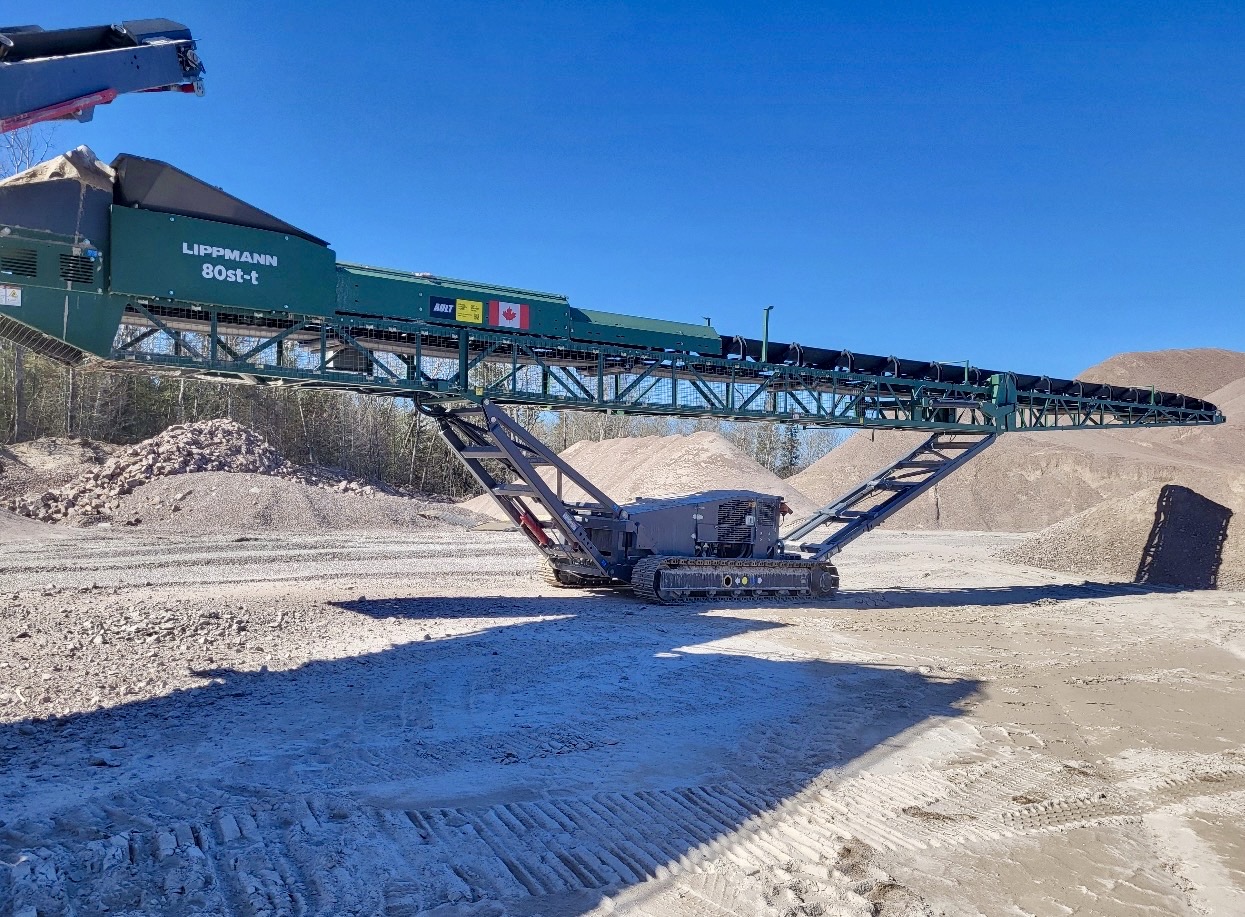

2025 McCloskey ST80T Stacker on Tracks:
- Hours: 1300H
- Engine: Cat C2.2/Tier 4/Stage V
- Horsepower: 60hp
- Other: Under 5 min set up time, belt 80′ long x 36″ wide, max stockpile height 32’10”, production rate 500 to 800 TPH, max conveyor or angle 22.5 degrees, hydraulic folding frame, large feed hopper, scale!
